Analytics Workstation

Version: 1.0.0-buildweek

Software that investigates before it recommends.

Analytics Workstation is an evidence-governed AI investigation platform for analytical work that cannot be reduced to a dashboard, notebook, report, or one-shot AI answer.

Most AI tools answer the question.

Analytics Workstation answers the harder one:

Why should I believe this?

It helps move from a business objective to a decision-ready recommendation by preserving the investigation itself: what was observed, what remained uncertain, which explanations competed, what evidence was gathered, how beliefs changed, which claims were verified, and why the final recommendation deserves trust.

Analytics Workstation does not just produce answers. It conducts transparent investigations that can revise their conclusions as evidence accumulates, then critique their own recommendations before asking for trust.

This project is both a software product and a documented experiment in AI-assisted software engineering.

Judge This In 90 Seconds

1. View the investigation exhibits.
2. Run the deterministic Build Week mock demo.
3. Ask Why should I believe this?
4. Open the Report Browser and inspect the preserved evidence.

Where The AI Operates

Actor	Responsibility
Human	Defines objectives, reviews evidence, decides whether to act
GPT-5.6	Frames investigations, selects bounded tools, synthesizes evidence, explains belief changes, verifies claims
Deterministic Tools	Produce EDA, regression, SHAP, validation, reports, replay artifacts
Analytics Workstation	Preserves provenance, investigation state, evidence lineage, replay, integrity review

Investigation Loop

Objective -> Uncertainty -> Competing Explanations -> Evidence -> Belief Revision -> Claim Verification -> Integrity Review -> Decision Readiness

Evidence Exhibits

These figures combine product captures and curated evidence exhibits. They are not decoration; each one shows a distinct part of the investigation loop the product preserves.

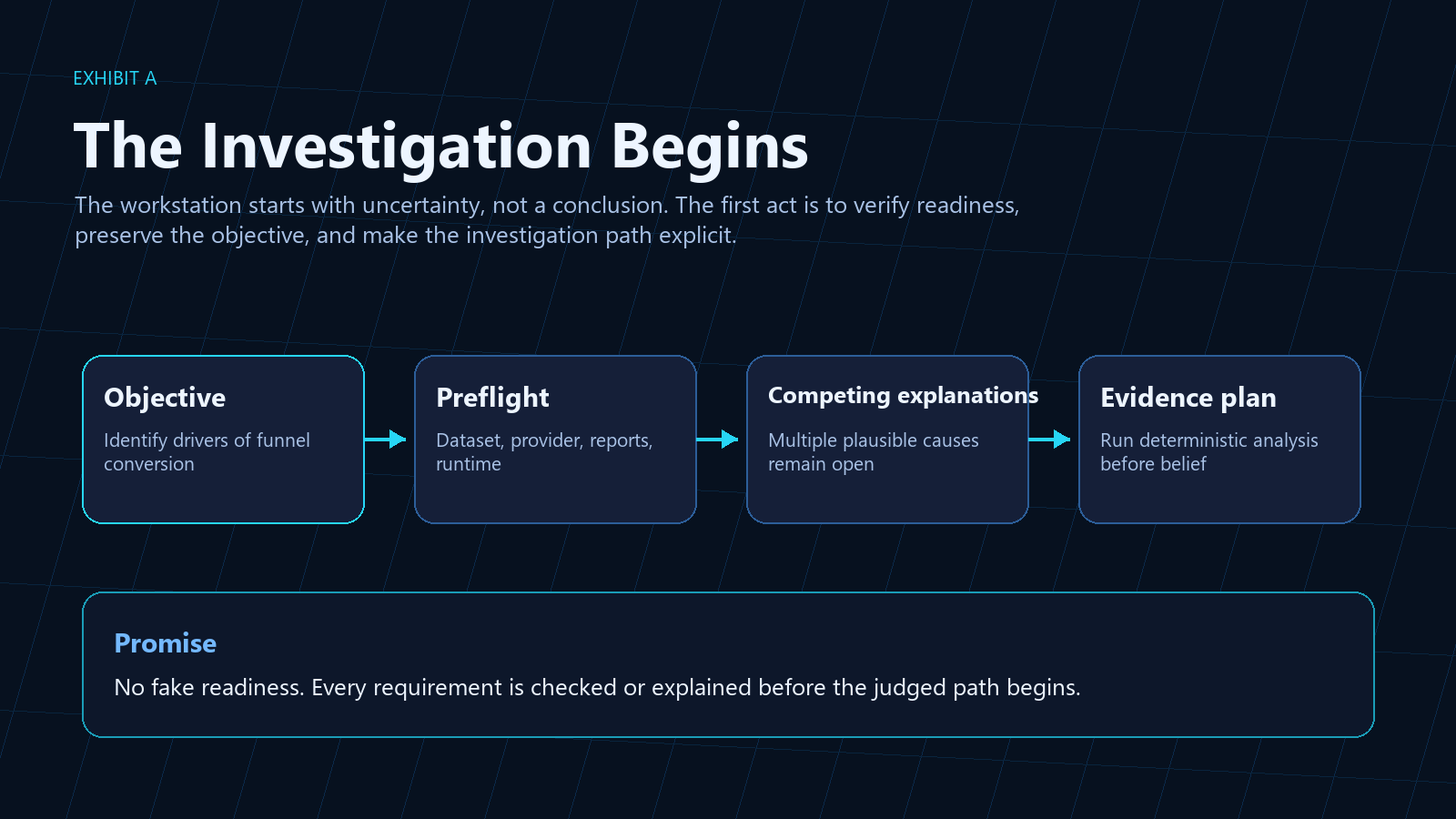

Figure 1 - The Investigation Begins

The Build Week demonstration starts with uncertainty, not a conclusion: an objective, readiness checks, competing explanations, and an explicit evidence plan.

The investigation begins

Figure 2 - Belief Revision

The recommendation is allowed to change because the evidence changed.

Belief revision sequence

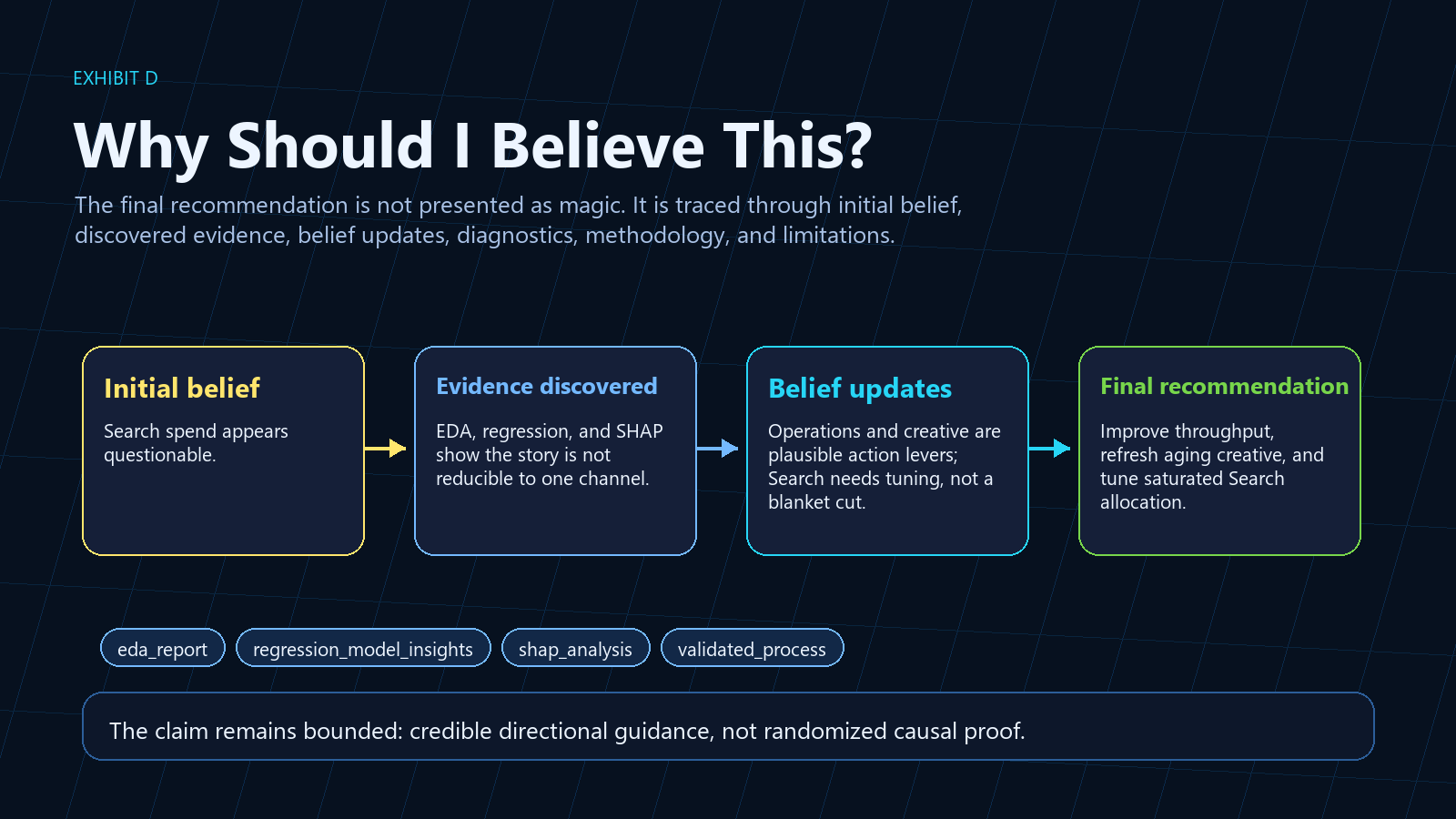

Figure 3 - Claim Verification

The system can answer why a final claim deserves belief by tracing it through evidence, diagnostics, methodology, and limitations.

Claim verification

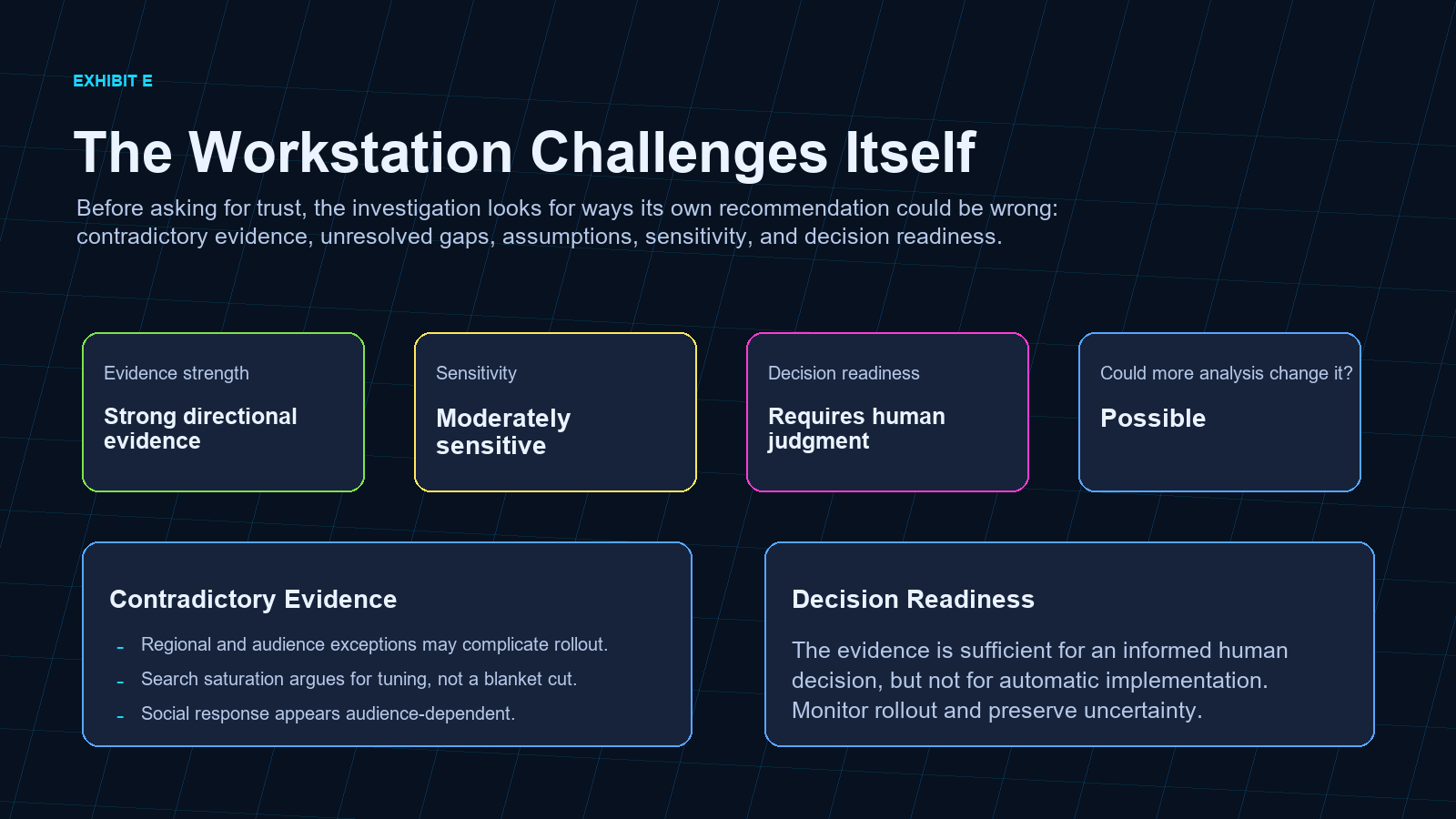

Figure 4 - Integrity Review

The investigation ends by challenging its own conclusion before asking the user to trust it.

Integrity review

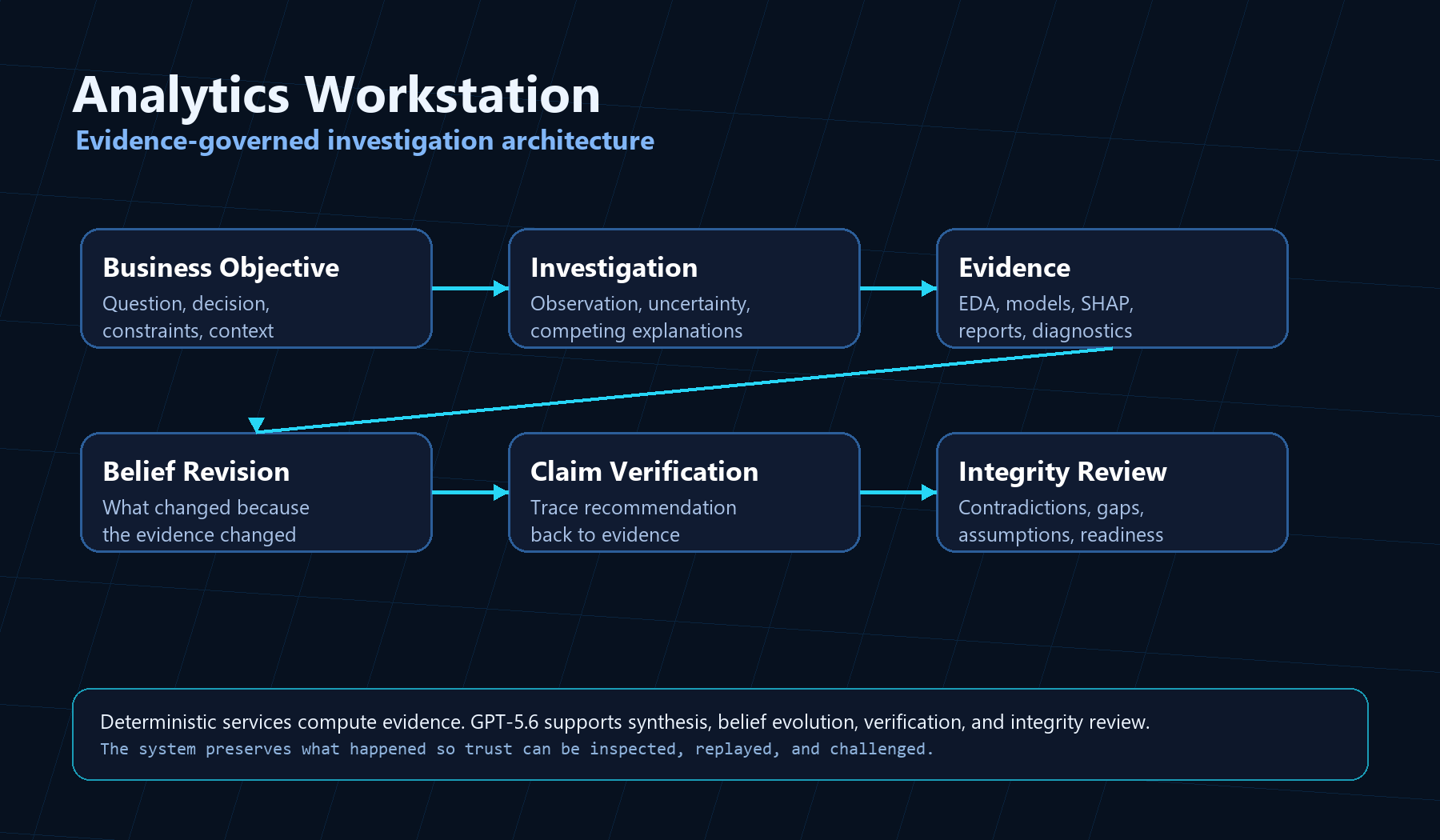

Figure 5 - Architecture In One Frame

Deterministic services compute evidence; GPT-5.6 supports synthesis, belief evolution, verification, and integrity review inside bounded contracts.

Architecture overview

What The Build Week Demo Shows

The Build Week demo is a focused investigation over a deterministic synthetic enrollment-growth dataset.

In a few minutes, the viewer should see:

1. A business objective become a governed investigation.
2. The system record uncertainty before recommending action.
3. Competing explanations remain visible.
4. Deterministic analytics generate evidence.
5. The recommendation change as evidence changes.
6. The final claim verified against evidence.
7. The workstation challenge its own conclusion.
8. Decision readiness stated transparently.

What GPT-5.6 Does

GPT-5.6 is used where probabilistic synthesis is useful:

• investigation framing;
• semantic synthesis;
• belief-evolution narrative;
• recommendation evolution;
• claim verification;
• integrity-review explanation.

It is not used to invent evidence or replace deterministic analytics.

Deterministic services remain responsible for data generation, EDA, regression diagnostics, SHAP evidence, validation, replay, report-contract construction, and QA.

Why Engineers Should Care

• Deterministic analytical services generate the evidence.
• ReportContract objects separate analytical meaning from rendering.
• Provenance records producing functions, package paths, and artifact identities.
• Replay reconstructs the investigation state without rerunning the analysis.
• Agent actions are bounded by registered tools, preflight checks, and approvals.
• Demo-critical fallbacks are tested and rejected instead of silently substituting plausible output.

Why It Is Different

Traditional analytics	LLM dashboards	Analytics Workstation
Shows metrics and outputs	Adds natural-language summaries	Preserves the investigation path
Often hides rejected explanations	Explains whatever context is pasted in	Tracks competing explanations explicitly
Produces static recommendations	Produces fluent answers	Revises recommendations as evidence changes
Separates reports from evidence	Summarizes artifacts after the fact	Links claims back to evidence
Leaves trust to the presenter	Can sound confident without proof	Performs skeptical integrity review before action

The product is not trying to make analytics feel magical. It is trying to make analytical reasoning visible, governed, and reusable.

The Story Behind The Product

The repository is also evidence from a development experiment.

As AI-assisted implementation made many coding steps cheaper, the project repeatedly spent that savings on harder questions about evidence, governance, representation, trust, product experience, and architectural coherence.

Read the canonical historical narrative:

• docs/the_story.md

For the longer development record, see:

• docs/development_ordeal.md

Build Week Demo Path

Run the app, then open:

More -> Build Week Demo

For deterministic rehearsal, select Mock rehearsal. This exercises the same app contracts without a paid provider call.

For a live GPT-5.6 path, set:

$env:OPENAI_API_KEY="sk-..."
$env:ANALYTICS_GENAI_PROVIDER="openai"
$env:ANALYTICS_GENAI_MODEL="gpt-5.6"

Then run:

1. Run Preflight
2. Launch Demo
3. Why should I believe this?
4. Report Browser
5. Replay
6. Reset

Run Locally

For the installed-package path:

install.packages("release/AnalyticsShinyApp_1.0.0.tar.gz", repos = NULL, type = "source")
library(AnalyticsShinyApp)
run_workstation()

For source-tree development from the repository root:

shiny::runApp(".")

Or from PowerShell:

Rscript -e "shiny::runApp('.')"

The app performs startup dependency checks before loading the Shiny UI.

Install On Windows

For the normal Windows desktop workflow, run the installer from the repository root. This installs the R package, prepares the Electron shell when Node.js/npm are available, and creates a Start Menu launcher:

powershell -NoProfile -ExecutionPolicy Bypass -File .\install_windows.ps1

For a Desktop shortcut:

powershell -NoProfile -ExecutionPolicy Bypass -File .\install_windows.ps1 -DesktopShortcut

The installer:

• installs R dependencies and sibling first-party packages;
• installs the AnalyticsShinyApp R package;
• launches from installed package resources rather than copied developer source;
• prepares the Electron shell when Node.js and npm are available;
• creates a Start Menu launcher;
• runs package and distribution diagnostics.

Run The Electron Desktop App

After installation, launch the desktop app from:

Start Menu > Analytics Workstation

Or run the installed Electron launcher directly:

& "$env:LOCALAPPDATA\Programs\Analytics Workstation\Analytics Workstation Electron.cmd"

The main launcher is:

& "$env:LOCALAPPDATA\Programs\Analytics Workstation\Analytics Workstation.cmd"

It opens Electron when Electron dependencies are installed. If Electron is not available, it falls back to the browser launcher so the workstation still opens.

To intentionally run the browser version:

& "$env:LOCALAPPDATA\Programs\Analytics Workstation\Analytics Workstation Browser.cmd"

If Chrome or your default browser opens, you are using the browser fallback path rather than the Electron shell.

Installed app assets live under:

R package library: AnalyticsShinyApp/app

User projects, exports, logs, cache, and runtime state live under:

%LOCALAPPDATA%\AnalyticsWorkstation\

See:

• docs/windows_installation.md
• docs/package_architecture.md
• docs/electron_distribution.md
• docs/troubleshooting_installation.md

Installation And Dependencies

The Windows installer is preferred for end-user setup. For local development or after switching R versions, run the dependency installer directly:

Rscript scripts/install_app_dependencies.R

Core R packages required for startup:

• AutoPlots
• AutoQuant
• data.table
• echarts4r
• htmltools
• htmlwidgets
• openxlsx
• shiny

The dependency installer reads DESCRIPTION, installs declared CRAN packages with recursive dependencies, then installs first-party ecosystem packages from sibling repositories when available:

• ../AutoPlots
• ../AutoQuant
• ../AutoNLS
• ../Rodeo

If a sibling repository is not available, the installer falls back to the canonical GitHub repository for that package and fails loudly if any required first-party capability remains unavailable. This is the preferred path after switching R versions, refreshing sibling repositories, or validating a fresh machine.

Install released CRAN dependencies:

install.packages(c("shiny", "data.table", "echarts4r", "htmltools", "htmlwidgets", "openxlsx"))

Install the local ecosystem packages:

install.packages("remotes")
remotes::install_github("AdrianAntico/AutoPlots")
remotes::install_github("AdrianAntico/AutoQuant")
remotes::install_github("AdrianAntico/AutoNLS")
remotes::install_github("AdrianAntico/Rodeo")

During local development, use local installs:

remotes::install_local("../AutoPlots")
remotes::install_local("../AutoQuant")
remotes::install_local("../AutoNLS")
remotes::install_local("../Rodeo")

AutoNLS is the optional nonlinear effect-curve backend exposed through SHAP effect-curve controls and executed through AutoQuant when available. It is not required for app startup. If unavailable, the app should keep running and effect-curve paths should degrade explicitly.

Other optional packages used by richer workstation paths include:

• arrow for Parquet loading;
• base64enc, png, and chromote for artifact previews and screenshots;
• callr, mirai, and ps for async or isolated execution paths;
• commonmark for markdown rendering;
• curl, httr, and httr2 for GenAI provider endpoints;
• digest and yaml for audit, storage, and technical-debt utilities;
• jsonlite for JSON sidecars, manifests, and runtime bundles;
• reactable for interactive tables;
• roxygen2 and testthat for development and QA.

Do not use devtools::load_all() or source internal package files from sibling repositories in production app code. Install package dependencies into the active R library instead.

To check whether the active R runtime sees the expected capability set:

library(AnalyticsShinyApp)
workstation_diagnostics()
qa_package_distribution()

Validation

Useful checks before recording or submitting:

& "C:\Program Files\R\R-4.5.2\bin\Rscript.exe" scripts\run_deterministic_qa.R
& "C:\Program Files\R\R-4.5.2\bin\Rscript.exe" -e "testthat::test_file('tests/testthat/test-build-week-demo.R')"
git diff --check

For release-candidate pushes, use the guarded push path instead of git push:

powershell -NoProfile -ExecutionPolicy Bypass -File .\scripts\guarded_push.ps1

This mirrors the GitHub Actions release gates before pushing: dependency installation, R CMD check, deterministic QA, pkgdown build, tracked-file cleanliness, and git diff --check.

To install the same gate as a local Git pre-push hook:

powershell -NoProfile -ExecutionPolicy Bypass -File .\scripts\install_git_hooks.ps1

An emergency bypass is possible with AW_SKIP_PRE_PUSH=1, but it should be treated as an explicit release-steward exception.

See docs/final_demo_reliability_checklist.md for the full recording gate.

Repository Layout

• R/: application services, pages, contracts, QA helpers, and orchestration.
• inst/app/: package-installed UI assets, config defaults, and deterministic demo data.
• www/: source-tree mirror of workstation styling, branding, and client assets for development.
• docs/: architecture, demo, product, and submission documentation.
• docs/media/: product captures, evidence exhibits, and browser-recorded videos.
• data/: deterministic Build Week demo data.
• tests/: deterministic testthat coverage.
• scripts/: data generation, validation, and dependency helpers.
• release/: Build Week release candidate artifacts.

Contributor Starting Points

If you are new to the repository, start here:

1. docs/architecture_orientation.md
2. docs/development_principles.md
3. docs/contributor_roadmap.md
4. CONTRIBUTING.md
5. docs/README.md

Before opening a pull request, run the validation commands in CONTRIBUTING.md and check docs/open_source_readiness.md for known repository-health follow-ups.

Current Scope

The Build Week path is a focused product demonstration, not a claim of general autonomous analysis. It deliberately avoids arbitrary action execution, broad task planning, hidden evidence mutation, and unsupported provider behavior.

That restraint is part of the product philosophy: the workstation should earn trust through transparent evidence, not through unchecked automation.
